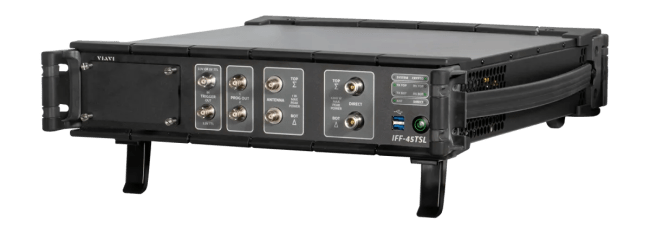

VIAVI IFF-45TSL MK XIIB/TACAN Bench Test Set, Base unit hardware only
- Comprehensive all-in-one platform for IFF, ADS-B, TACAN, and DME testing
- Reduces test time through advanced automation and remote-control capabilities
- Supports production, maintenance, calibration, and return-to-service workflows
- Advanced target simulation enables realistic operational and certification testing
- Modern RF architecture delivers improved accuracy, stability, and long-term reliability
VIAVI IFF-45TSL MK XIIB TACAN & ADS-B Bench Test Set
This is a general description for the IFF-45TSL series, see datasheet under document archive for details
The VIAVI IFF-45TSL MK XIIB/TACAN Bench Test Set is a next-generation RF signal generator and receiver designed for avionics engineering, production testing, depot maintenance, and return-to-service verification. The system provides comprehensive testing capabilities for MK XIIB IFF transponders and interrogators, TACAN/DME navigation equipment, ADS-B systems, and Mode 5 applications within a single, highly capable platform
Designed to meet the demanding requirements of military and aerospace organizations, the IFF-45TSL supports testing of Modes 1, 2, 3/A, C, S, 4, and 5 while also providing TACAN and DME simulation capabilities. The system can emulate both TACAN ground transponders and airborne interrogators, making it ideal for laboratory, production, and field support environments
The platform features significantly enhanced DSP, FPGA, processor, and memory resources, delivering improved RF performance, greater stability, and expanded testing functionality. Integrated ADS-B In and ADS-B Out capabilities support monitoring and verification of ADS B, TIS B, ADS R, and acquisition squitters
An optional Target Generator enables simulation of up to eight configurable aircraft targets with customizable Flight ID, aircraft address, bearing, range, altitude, interrogation modes, and squitter parameters. Each simulated target can generate real-time responses to received interrogations and transmit ADS-B and Mode 5 Level 2-B squitters for advanced operational testing
The IFF-45TSL supports direct-connect and over-the-air testing with operational ranges of up to 3 km using suitable antennas. Ethernet (VXI-11), RS-232, and IEEE-488/GPIB interfaces simplify integration into automated test systems and production environments
Key Features
- Complete MK XIIB IFF transponder and interrogator testing for Modes 1, 2, 3/A, C, S, 4, and 5
- TACAN and DME testing including G/A, A/A, Beacon, and Inverse operating modes
- ADS-B In and ADS-B Out testing capabilities including squitter monitoring
- Optional Target Generator supporting up to eight configurable aircraft targets
- Mode 5 Level 2-B support with corresponding software options
- AIMS 17-1000 compliant architecture with pending DoD AIMS MK XIIB certification
- RF signal generation from 962 to 1213 MHz with 10 kHz resolution
- Direct RF output from 0 dBm to -110 dBm in 0.1 dB increments
- Supports direct-connect and over-the-air testing up to 3 km
- Ethernet, RS-232, and IEEE-488/GPIB remote control interfaces
- Built-in Mode 5 and National Secure Mode crypto simulation capabilities
- Compact 2U rackmount design for laboratory and production environments
EXPORT CONTROL
This product is controlled for export under the International Traffic in Arms Regulations (ITAR). A license from the U.S. Department of State is required prior to the export of this product from the United States.
For more information see datasheet here on the page, or contact us
