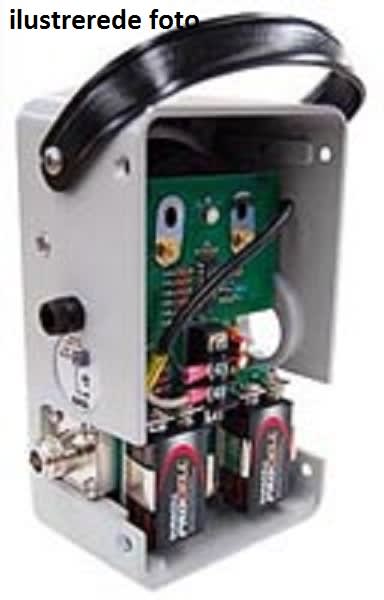

Bird Tilbehørssett til Model 43 - Spisseffekt

Produktnummer: 113532

  • Tilbehør til Bird 43 Generelt RF Effektmeter
  • Bygg om instrumentet for måling av spisseffekt
  • Måler effekt i frekvensområde 450kHz -2,7 GHz
  • Effektområde 100 mW - 10 KW
  • Ta kontakt for tilpasning og valg av element

Retrofit Kit 4300-400Modyfy Model 43 to Model 43PThe kit modify the Model 43 Wattmeter with a Peak Reading Kit installed that allows true peak power output at ± 8% of full scale, QC (quick change) type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels giving the 43P amazing flexibility. Two extra elements can be stored in the housing, one on each side. The 43P is easy to use and simple to service in the field.•Accurate CW field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 KW.
